Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview – tank flap unit, e-Golf

This assembly overview covers the e-Golf-specific tank flap unit, which houses a charging socket rather than a fuel filler — including the immediate charge button -E766- and its own 1.5 Nm bolts and actuator.

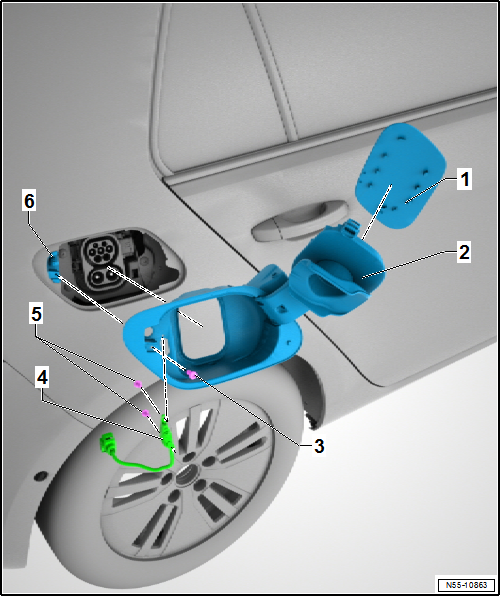

Assembly overview – tank flap unit, e-Golf

1 -  Fuel tank flap
–  Removing and installing → Chapter.
2 -  Tank flap unit
  • Removing and installing.
3 -  Bolt
  • 1.5 Nm
4 -  Immediate charge button E766
  • Removing and installing
5 -  Bolt
  • 1.5 Nm
6 -  Actuator
  • Removing and installing → Chapter
