Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing Hall sender 3 -G300-

This page covers removing the Volkswagen Golf Mk7 Hall sender 3 -G300- — the same air pipe hose clip release, connector disconnection and bolt removal sequence as sender -G40-.

Removing

–  Release hose clips -1- and -2-, and remove air pipe.

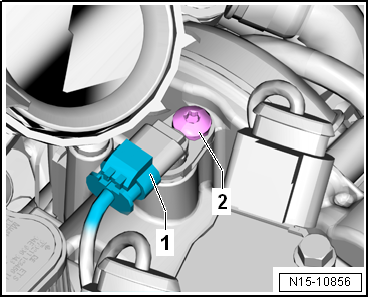

Removing and installing Hall sender 3 -G300-

–  Disconnect electrical connector -1-.
–  Unscrew bolt -2- and remove Hall sender 3 -G300-.
Installing
–  Install in reverse order.
Specified torques
→ Chapter „Assembly overview - ignition system“


Removing and installing Hall sender 3 -G300-

    Questions & answers

    Removing and installing Hall sender 3 -G300- — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 1.4 TSI Hall sender 3 -G300-?
    Disconnect, unbolt and remove. This is the secondary camshaft position sensor on engines with variable timing on both camshafts.
