Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear window

This assembly overview gives the Volkswagen Golf Mk7 rear window's PUR adhesive sealant bead cross-section — 7 mm wide, 10 mm high — the same bonding specification used for the windscreen.

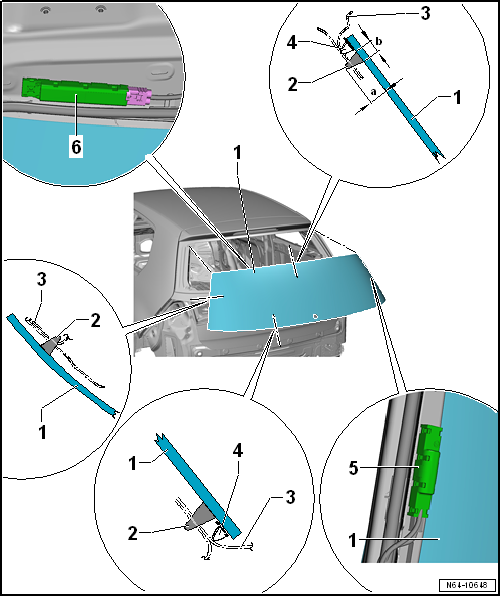

Assembly overview - rear window

1 -  Rear window
  • Removing and installing → Chapter
2 -  PUR adhesive sealant
  • Cross section of bead: -width b- = 7 mm, -height a- = 10 mm (including precoating, residual material on window glass and window flange).
  • Minimum curing period → Chapter.
3 -  Body flange
4 -  Spacer
5 -  Connection for rear window heating
6 -  Aerial connection
