Remove backrest cover and backrest padding
→ Chapter. |
|
|
|
| – |

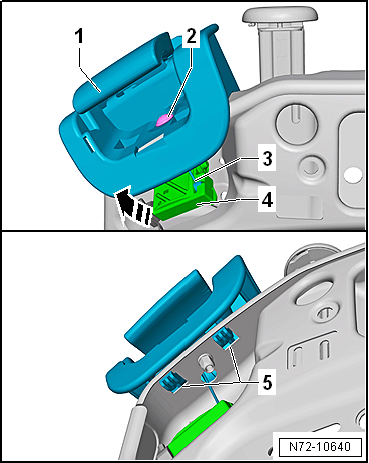

Pull operating lever -1-
upwards and unscrew bolt -2-. |
| – |
Push mounting bracket for backrest release mechanism
-4- upwards
-arrow- and detach connecting Bowden cable
-3-. |
| – |
Release retaining lugs -5- of
backrest release mechanism. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - backrest release mechanism and
entry assistance“ |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
Questions & answers
Removing and installing backrest release mechanism — Volkswagen Golf Mk7
How do I remove the Golf Mk7 backrest release mechanism?
Remove backrest cover and padding, pull the lever up, unbolt it, push the mounting bracket aside and withdraw the mechanism.
Removing
–
Pull operating lever -1-
upwards -arrow A-.
–
Insert flat-bladed screwdriver between tr ...
Removing
–
Remove backrest cover and backrest padding
→ Chapter.
...
