 Note
| When renewing control unit, select
Renewal function for respective control unit in “Guided
fault finding” or “Guided functions” using → Vehicle
diagnostic tester. |
| Special tools and workshop equipment
required |
|
|
|
| – |
Remove steering column switch module
→ Electrical system; Rep. gr.94. |
|
|
|
| – |

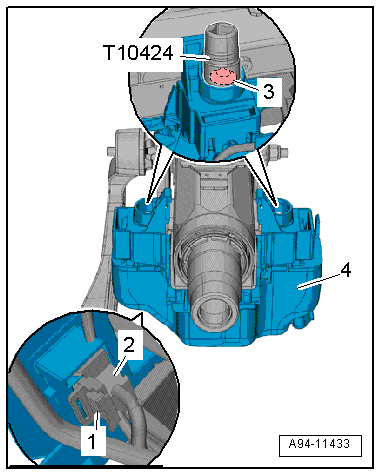

Disconnect connector -2-. To do
this, slide catch -1- to rear and
push release downwards. |
| – |
Unscrew shear-head bolt -3-

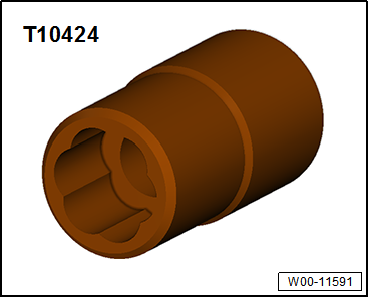

using socket -T10424-. |
| – |
Remove control unit for electronic steering column lock
-J764--item 4- |
Note
| If the shear-head bolt cannot be removed using socket
-T10424-, drill out using an angle drill and an 8.5 mm twist
drill. |
| Install in reverse order of removal, observing the
following: |
|
|
|
| – |

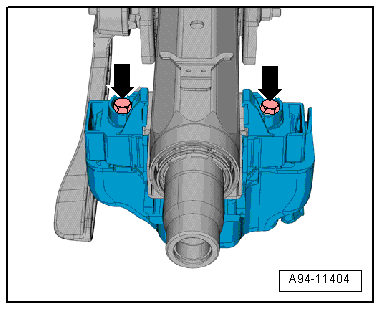

Tighten new bolts -arrow- until
shear-head shears off. |
|
|
|
Questions & answers
Removing and installing control unit for electronic steering column lock -J764- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 electronic steering lock -J764-?
Disconnect the battery, remove column trims, disconnect the connector, unbolt and remove. A new unit must be coded to the vehicle via diagnostics.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1331-
...
