 Note
| Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Removal lever -80 - 200 |
| – |
Remove D-pillar trim
→ Chapter. |
| – |
Remove wheel housing trim
→ Chapter. |
| – |
Only release luggage compartment side trim in area of C-pillar,
D-pillar and rear side window. Do not remove it completely. |
| – |

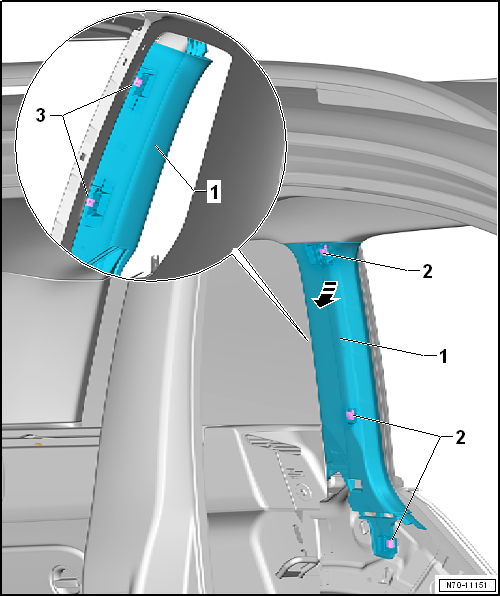

Unclip C-pillar trim -1- in area of
retaining clips -2- from body mountings
using removal lever -80 - 200-. |
| – |
Unclip C-pillar trim from retaining clips -3-. |
| – |
Remove C-pillar trim downwards -arrow-. |
Note
-
| |
Before installing, check all fasteners for damage and
renew if necessary. |
-
| |
Remove any retaining clips -2-
left in body mountings using removal tool -T40280- and fit
them in C-pillar trim for installation. |
-
| |
Following installation, ensure that the C-pillar trim
is positioned in door seal beading. |
| Installation is carried out in reverse order. |
|
