Removing radiator grille
→ Chapter |
| – |

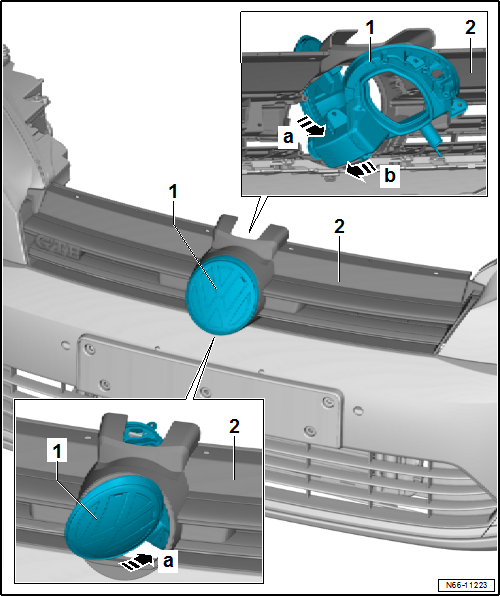

Push flap for charging bay -1- towards
side, -arrow a-. |
| – |
Swing flap for charging bay -1- through
radiator grille -2- towards outside
-arrow b-. |
| – |
Swing flap for charging bay -1- through
radiator grille -2- towards inside
-arrow a-. |
| – |
Push flap for charging bay -1- towards
side to its installation position, -arrow b-. |
| |
Bolts on flap for charging bay
→ Item |
Questions & answers
Removing and installing flap for charging bay — Volkswagen Golf Mk7
How do I remove the Golf Mk7 e-Golf charging bay flap?
Remove the radiator grille, unbolt the flap, push it sideways out of its guides, and swing it through the grille opening.
Removing
Note
On vehicles with a flap for the charging bay in the radiator grille,
the connector must be disconnect ...
Removing
–
Removing radiator grille
→ Chapter
–

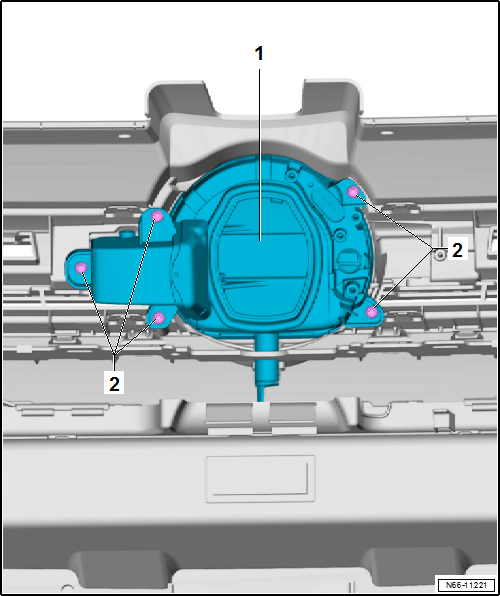

Remove bolts -2-.
...
