Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear centre console trim

Using front-end hook -3370-, this page covers removing the Volkswagen Golf Mk7 rear centre console trim — move the front seats fully forward, then pull the trim's bottom end rearward off the console.

Special tools and workshop equipment required

Removing –  Move front seats as far forwards as possible.

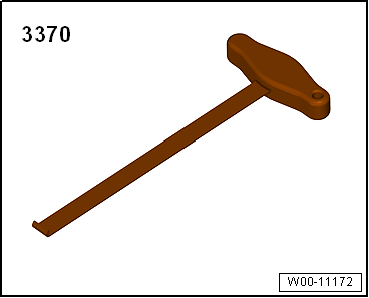

Front-end hook -3370-

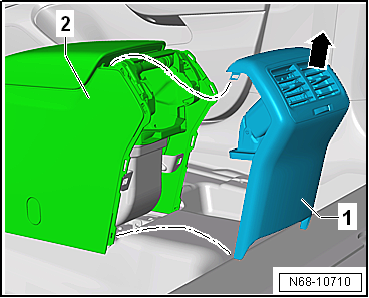

–  Pull rear trim -1- at bottom end to rear off centre console -2- using front-end hook -3370-. –  Pull rear trim -1- upwards off centre console -2--arrow-. Installing   Note Before installing, check all fasteners for damage and renew if necessary. Installation is carried out in reverse order.

Questions & answers

Removing and installing rear centre console trim — Volkswagen Golf Mk7

How do I remove the Golf Mk7 rear centre console trim?

Move front seats forward, use front-end hook -3370-, pull the rear trim at the back edge and release it from its clips.
