Volkswagen Golf Mk7 Service & Repair Manual: Cavity sealing, body at front and centre

This page maps the Volkswagen Golf Mk7 front and centre body cavity sealant zones — including the 2-door door cavity (left side shown; right is a mirror image) — that must be resealed after repair.

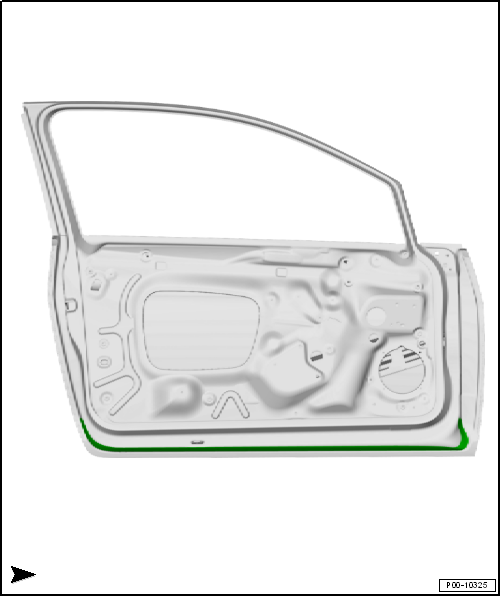

Cavity sealing, door of 2-door
Illustration shows left side. The right side is the mirror image.
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, body at front and centre

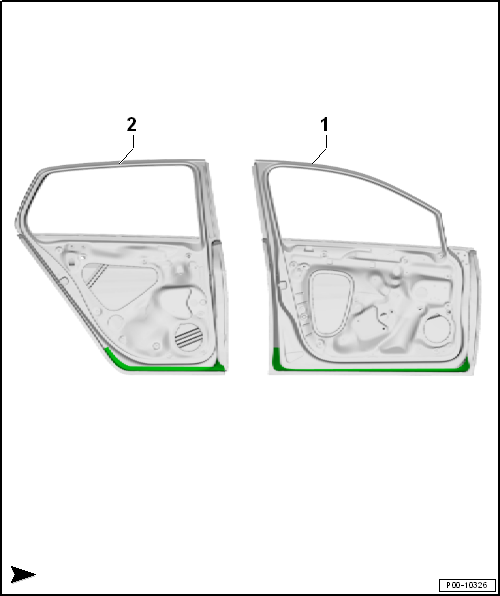

Cavity sealing, doors of 4-door
Illustration shows left side. The right side is the mirror image.
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, body at front and centre

1 -  Front door
2 -  Rear door

    Questions & answers

    Cavity sealing, body at front and centre — Volkswagen Golf Mk7

    What front and centre Golf Mk7 cavities are sealed?
    Door cross-members (2-door and 4-door shown separately), front chassis legs, inner sill sections and A-pillar cavities.
