Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear left vehicle level sender -G76-, multi-link suspension, front-wheel drive

Using torque wrench -V.A.G 1410-, this page covers removing the FWD multi-link rear left level sender -G76- — the same connector-and-bolt removal sequence as the torsion beam variant.

Special tools and workshop equipment required

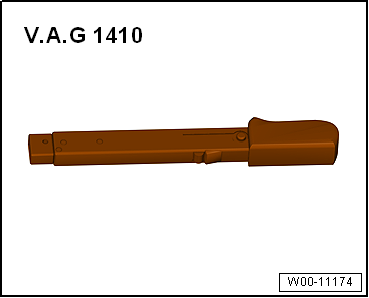

Torque wrench -V.A.G 1410-
Removing


Removing and installing rear left vehicle level sender -G76-, multi-link suspension, front-wheel drive

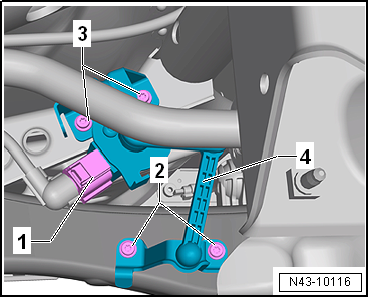

–  Disconnect connector -1-.
–  Remove bolts -2- and -3-.
–  Take out rear left vehicle level sender -G76--4-.
Installing
Install in reverse order of removal, observing the following:
Lever on vehicle level sender must face towards outside of vehicle.
Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.
Carry out basic setting of headlights → Electrical system; Rep. gr.94.
Specified torques
→ Chapter „Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive“
