Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - sunroof roller blind

This assembly overview covers the Volkswagen Golf Mk7 sunroof roller blind: its fabric mounting, 2 Nm bolts, tension wire securing the fabric in the pulling rib, carrier and slide components.

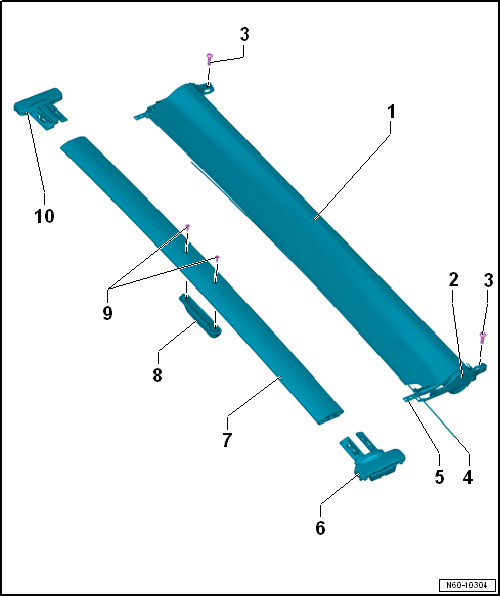

Assembly overview - sunroof roller blind

1 -  Sunroof roller blind
  • Removing and installing → Chapter.
2 -  Mounting
  • For sunroof roller blind fabric
3 -  Bolt
  • Qty. 2
  • 2 Nm
4 -  Tension wire
  • For securing the fabric in the pulling rib
5 -  Carrier
6 -  Slide
7 -  Pulling rib
  • Removing and installing → Anchor
8 -  Handle
9 -  Bolt
  • For the handle
  • Qty. 2
  • 1 Nm
10 -  Slide
