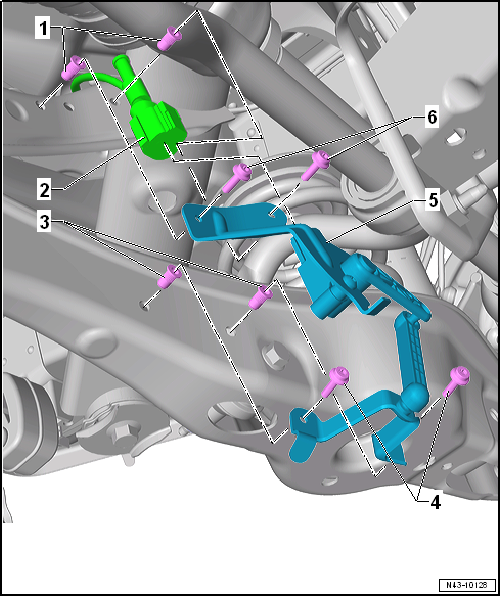

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear vehicle level senders, multi-link suspension, four-wheel drive
Note: the 4MOTION multi-link rear vehicle level sender is only available as a complete replacement part — this overview covers its pop rivet nut fasteners.
Note| The vehicle level sender is available as a replacement part only complete with coupling rod and upper and lower retaining plates. |
| 1 - | Pop rivet nut |
| 2 - | Electrical connector |
| 3 - | Pop rivet nut |
| 4 - | Bolt |
| 5 Nm |
| 5 - | Rear vehicle level senders |
| Complete with attachments |
| Lever must face outwards |
| Removing and installing → Chapter |
| Perform basic setting of wheel damper electronics → Vehicle diagnostic tester. |
| Carry out basic setting of headlights → Electrical system; Rep. gr.94 |
| 6 - | Bolt |
| 5 Nm |
