| Special tools and workshop equipment
required |
|
|
|
| |
|

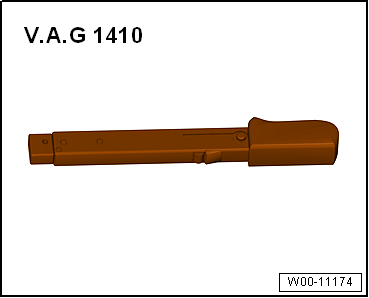

Torque wrench -V.A.G 1410 |
| – |
Fold down centre armrest and open lid for through-loading
aperture. |
| – |

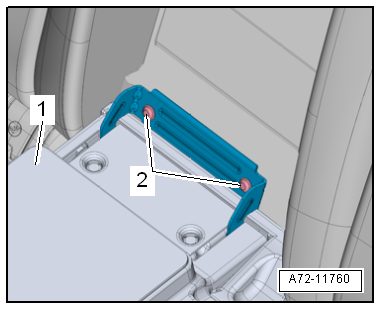

Remove centre armrest with lid -1-
for through-loading aperture. |
| – |
Remove centre armrest
→ Chapter. |
| – |
Remove lower intermediate padding
→ Chapter. |
| – |
Fit lid -1- for through-loading
aperture with centre armrest and tighten bolts only hand-tight. |
| – |
Close lid for through-loading aperture and align it. |
| – |
Tighten bolts -2- on rear seat
backrest. |
| Further installation is performed in reverse order of
removal |
| |
→ Chapter „Assembly overview - centre armrest“ |
|
|
|
