| Special tools and workshop equipment
required |
|
|
|
| Torque wrench -V.A.G 1410- |
| – |
Remove left luggage compartment side trim
→ General body repairs, interior; Rep. gr.70. |
|
|
|
| – |

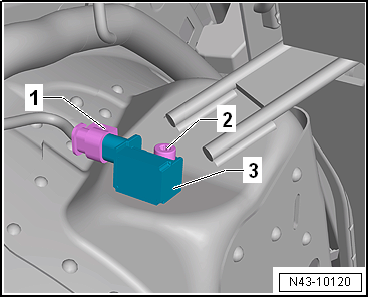

Release electrical connector -1-
and pull off. |
| – |
Unscrew bolt -2-, and remove
rear body acceleration sender -G343--3-. |
| Install in reverse order of removal, observing the
following: |
|
|
|
| – |

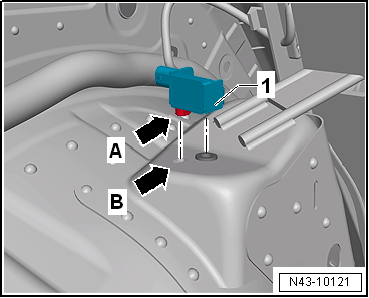

Insert rear body acceleration sender -G343--1-
so that lug -arrow A- engages into
hole -arrow B-. |
| – |
Perform basic setting of wheel damper electronics
→ Vehicle
diagnostic tester. |
|
|
|
| Component |
Specified torque |
| Rear body acceleration sender
-G343- to body |
8 Nm |
