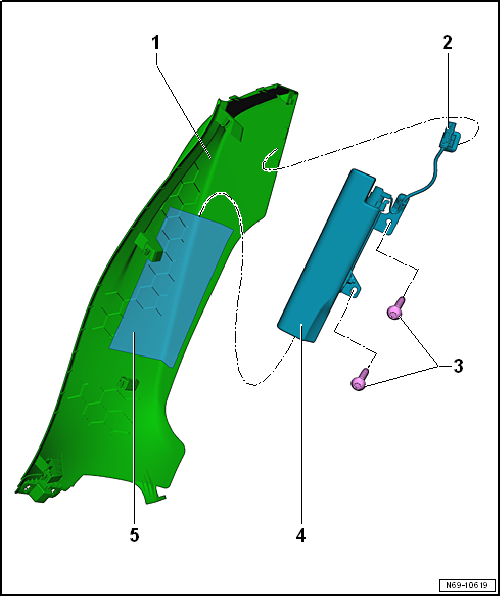

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear side airbag
This assembly overview covers the Volkswagen Golf Mk7 rear side airbag: the seat bolster, electrical wiring for igniters -N201-/-N202-, and mounting bolts torqued to 8 Nm.
| 1 - | Seat bolster |
| 2 - | Electrical wiring |
- From rear side airbag igniter on driver side -N201-/rear side airbag igniter on front passenger side -N202-
 WARNING
|
| 3 - | Bolts |
- Qty. 2
- 8 Nm
| 4 - | Rear side airbag |
- Driver side: with rear side airbag igniter on driver side -N201-
- Front passenger side: with rear side airbag igniter on front passenger side -N202-
- Removing and installing → Chapter
| 5 - | Airbag pocket |
