Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - roof grab handle

This assembly overview covers the Volkswagen Golf Mk7 front left roof grab handle (the remaining handles are analogous): its mounting bracket and spacer element clipped in place.

  Note
The assembly overview is shown for the front left roof grab handle. The assembly overview for the remaining roof grab handle is analogous.

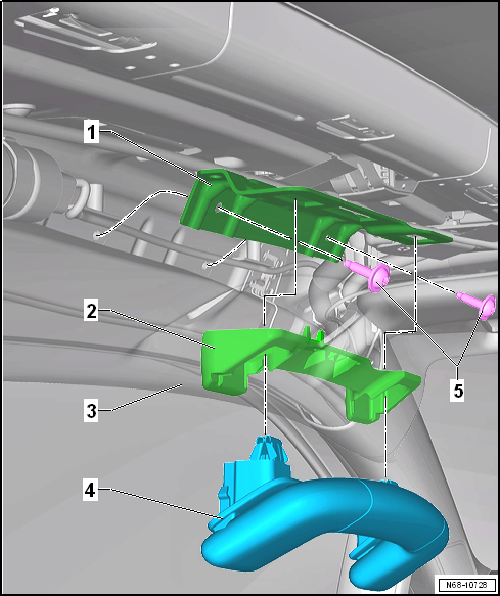

Assembly overview - roof grab handle

1 -  Bracket for roof grab handle
  • Removing and installing → Chapter
2 -  Spacer element
  • Clipped to roof grab handle
  • Before reinstalling, ensure that it is in the proper installation position and correct if necessary
  • It is not permissible to leave out the spacer element
3 -  Moulded headliner
  • Removing and installing → Chapter
4 -  Roof grab handle
  • Removing and installing → Chapter
5 -  Bolt
  • Qty. 2
  • 4.5 Nm

    Questions & answers

    Assembly overview - roof grab handle — Volkswagen Golf Mk7

    What does the Golf Mk7 grab handle assembly show?
    The bracket, handle, bolts and trim cap. Front left shown; other positions are analogous.
