| Special tools and workshop equipment
required |
|
|
|
| |
|

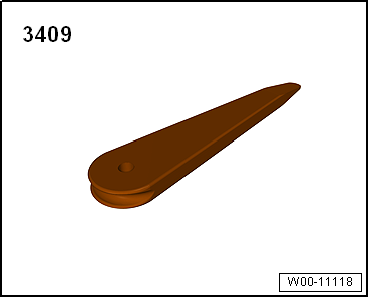

Removal wedge -3409 |
| – |
Remove side vent on driver side
→ Chapter. |
| – |
Release centre vent (do not remove it completely)
→ Chapter. |
| – |
Release gap cover in area of dash panel insert trim, but do
not remove it completely
→ Chapter. |
| – |

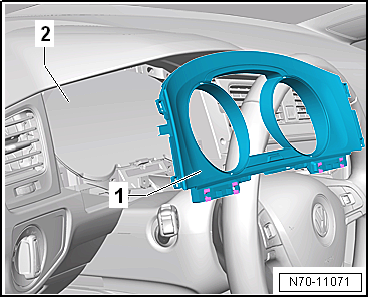

Unclip dash panel insert trim -1-
from dash panel using removal wedge -3409-. |
| – |
Remove dash panel insert trim -1-
from dash panel insert -2-. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing dash panel insert trim — Volkswagen Golf Mk7
How do I remove the Golf Mk7 dash panel insert trim?
Remove the side vent on driver side, release the centre vent catches with removal wedge -3409- and pull the trim out.
