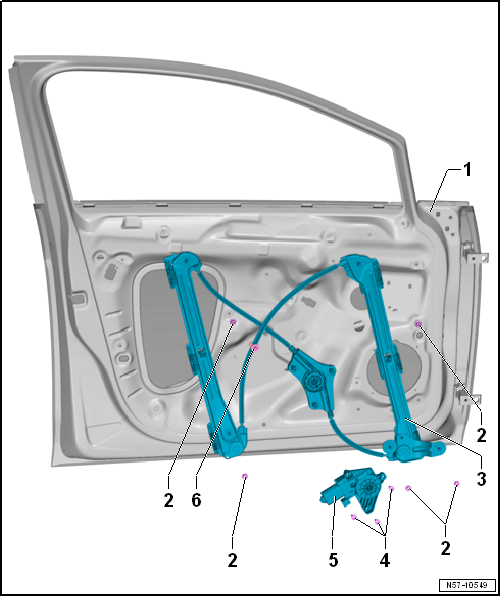

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - window regulator
This assembly overview covers the Volkswagen Golf Mk7 front window regulator: hexagon nuts (6 Nm, qty 5), regulator bolts (3 Nm, qty 3), the regulator motor -V14-/-V15-, and the clip that connects the glass to the regulator carrier.
| 1 - | Front door |
| 2 - | Hexagon nut |
- Qty. 5
- 6 Nm
| 3 - | Window regulator |
- Removing and installing → Chapter.
| 4 - | Bolt |
- Qty. 3
- 3 Nm
| 5 - | Window regulator motor -V14/V15- |
- Removing and installing → Chapter
| 6 - | Clip |
Questions & answers
Assembly overview - window regulator — Volkswagen Golf Mk7
What does the Golf Mk7 front window regulator assembly show?
The door, hexagon nuts (6 Nm), window regulator mechanism, bolts (3 Nm), regulator motor -V14/V15-, clips and the glass-to-regulator connection.
What torque are the Golf Mk7 window regulator bolts?
3 Nm for the regulator-to-door bolts and 6 Nm for the hexagon nuts. These are low torques — use a calibrated torque wrench.
