| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1331 |
| – |
Remove bench seat
→ Chapter. |
| – |
Remove rear right belt buckle with belt end fitting
→ Chapter. |
| – |

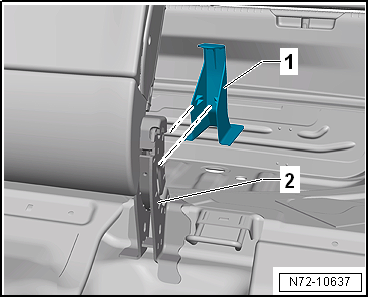

Pull cover -1- off centre mount
-2-. |
| – |
Separate Bowden cable for backrest release mechanism on left
and right
→ Chapter. |
| – |
Remove carrier for centre luggage compartment floor lining
→ Chapter. |
| Continued for all vehicles |
 Note
| For reasons of clarity, the left rear seat backrest (1/3) is
not shown. |
|
|
|
| – |
Equipment version with through-loading aperture: Open lid
for through-loading aperture and fold it down. |
| – |

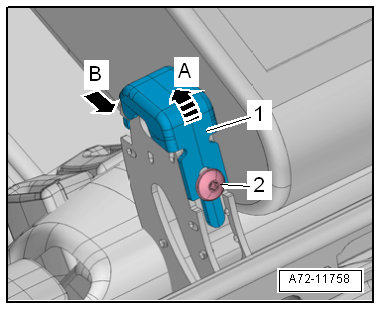

Fold up locking bar -1- at rear
-arrow A-, detach it at front from
centre mount -arrow B- and remove
it. |
Note
| For reasons of clarity, the left rear seat backrest (1/3) is
not shown. |
|
|
|
| – |

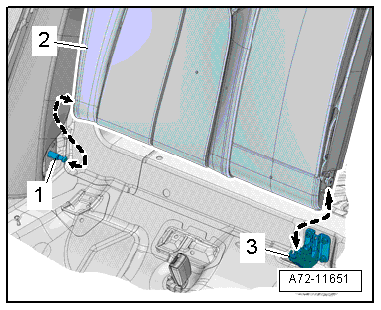

Lift rear seat backrest -2- out
of centre mount -3- and pull it
towards centre of vehicle out of outer mountings
-1--arrows-. |
| – |
Remove rear bench seat from vehicle. |
|
|
|
| – |
Push rear seat backrest -2- in
vertical position onto outer support pin
-1-. |
| – |
Position rear seat backrest -2-
in centre mount -3-. |
| Further installation is performed in the reverse order of
removal. |
| |
→ Chapter „Assembly overview - rear seat backrest“ |
|
|
|
