Using the same electric cutter -V.A.G 1561A-, scraping blade -V.A.G 1561/20- and cartridge gun -V.A.G 1628-, this page covers installing roof reinforcement on a Volkswagen Golf Mk7 estate with a sliding sunroof, cutting the reinforcements to the correct dimensions for this variant.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Electric cutter -V.A.G 1561A |
| |
|
Scraping blade -V.A.G 1561/20 |
| |
|
Cartridge gun -V.A.G 1628 |
| |
|
Release lever -T10039 |
| – |
Use hand-cartridge gun -V.A.G 1628- to apply
single-component assembly adhesive (
→ Electronic Parts Catalogue) to roof reinforcements.

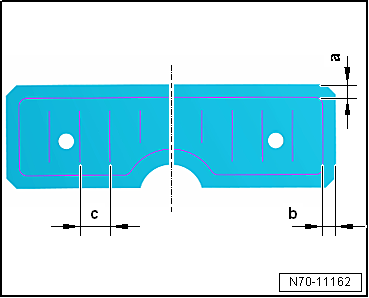

Observe the following dimensions while doing so. |
|
|
|
| – |
Measure roof reinforcements -1-
to width and mark centre of both sides. |
| – |

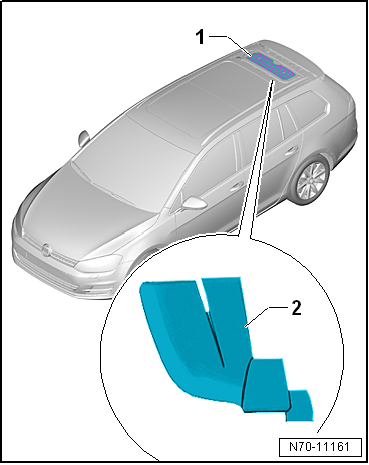

Guide roof reinforcement -1-
into vehicle. |
| – |

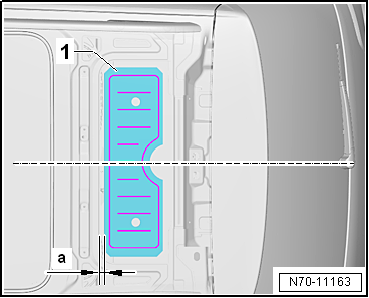

Position roof reinforcement -1-
according to -dimension a-
centrally on roof and press it on across entire surface. |
| Dimension -a- = 12 ± 1 mm from
rear sheet-metal edge. |
|
|
|
