| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation are described for the right
hinge only. Removal and installation of the left hinge are
similar. |
|
|
Torque wrench -V.A.G 1331- |
| – |

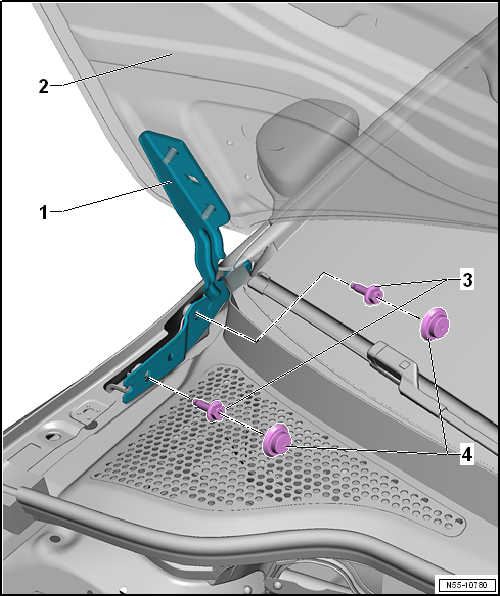

Removing bonnet -2-
→ Chapter |
| – |
If fitted, remove caps -4-. |
| Installation of the hinge -1- is
carried out in the reverse order of removal. |
| – |
Install bonnet -2-
→ Chapter. |
| |
Hinges
→ Chapter „Assembly overview - bonnet“ |
Questions & answers
Removing and installing hinges — Volkswagen Golf Mk7
How do I remove the Golf Mk7 bonnet hinges?
Mark the hinge position, support the bonnet, unbolt the hinge from the body and from the bonnet. Installation is the reverse — align using the marks.
Is the Golf Mk7 bonnet hinge procedure the same for left and right?
The manual describes one side only; the other is similar. Both must be removed if the full bonnet is being taken off.
