| Special tools and workshop equipment
required |
| Vehicle diagnostic tester |
| Location: electronically controlled damping control unit
-J250- is installed behind left luggage compartment side trim. |
| – |
Disconnect battery
→ Electrical system; Rep. gr.27. |
| Vehicles with keyless entry and start system “Keyless
Access” |
| – |
Switch off ignition and open driver's door so that the
steering lock engages. |
| Continuation for all vehicles |
| – |
Remove left luggage compartment side trim
→ General body repairs, interior; Rep. gr.70. |
|
|
|
| – |

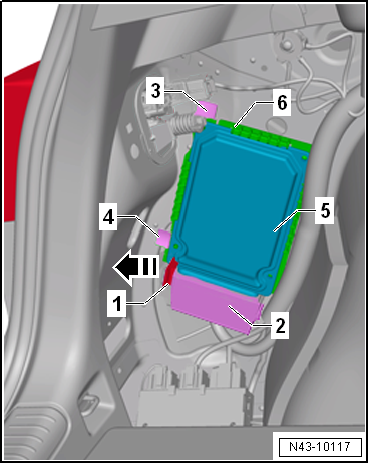

Release release lever -1- in
-direction of arrow-. |
| – |
Pull off electrical connector -2-. |
| – |
Press lugs -3- and
-4- to rear. |
| – |
Slide electronically controlled damping control unit -J250--5-
downwards out of retainer -6-. |
| Install in reverse order of removal, observing the
following: |
| – |
Function Replace control unit
must be performed with → Vehicle
diagnostic tester if electronically controlled
damping control unit -J250- has been renewed. |
| – |
If the reference position has been re-adapted, the front
camera for driver assist systems must be recalibrated on
vehicles with lane departure warning function
→ Chapter „Calibrating front camera for driver assist systems“. |
|
|
 |
