Remove poly V-belt from tensioner
→ Chapter „Removing and installing poly V-belt, vehicles with
air conditioner compressor“. |
|
|
|
| – |

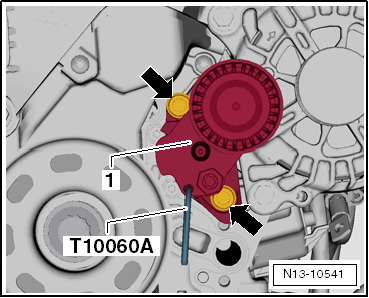

Remove bolts -arrows- and
detach poly V-belt tensioner -1-. |
| Installation is carried out in the reverse order; note the
following: |
| – |
Install poly V-belt
→ Chapter. |
| → Chapter „Assembly overview - poly V-belt drive, vehicles with
air conditioner compressor“ |
|
|
|
