Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - wing

This assembly overview covers the Volkswagen Golf Mk7 front wing, including R-Line and R variants — bolt positions and torques (6.0 Nm) at the A-pillar and side member, plus the rib-section insulation fitted between the wing and adjacent panel.

Volkswagen R GmbH, optional equipment, “R Line” and “R”

  Note
Only the left side is shown. The right side is similar.

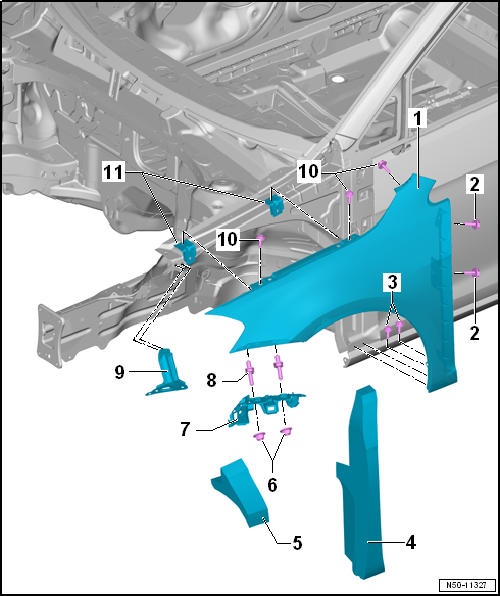

Assembly overview - wing

1 -  Wing
  • Removing and installing → Chapter
2 -  Bolt
  • Qty. 2, A-pillar
  • 6.0 Nm
3 -  Bolt
  • Qty. 2, side member
  • 6.0 Nm
4 -  Insulation for rib section
  • Inserted between wing and A-pillar.
5 -  Wing insulation
  • Inserted between wing and upper wheel housing longitudinal member
6 -  Hexagon nut
  • Qty. 2
  • 2.0 Nm
7 -  Guide bracket
  • Removing
  • Remove front bumper cover → Chapter
  • Unscrew hexagon nut -6-
  • Different versions, allocation → Electronic Parts Catalogue “ETKA”
8 -  Centre hex stud
  • Qty. 2, wing bracket
  • 6.0 Nm
9 -  Wing bracket
  • Removing and installing → Chapter
10 -  Bolt
  • Qty. 3, wing connection piece
  • 6.0 Nm
11 -  Deformable element
  • At front and rear → Chapter

    Questions & answers

    Assembly overview - wing — Volkswagen Golf Mk7

    What does the Golf Mk7 wing assembly overview show?
    The wing panel, its mounting bolts (A-pillar and side member), insulation pieces, seals, and the screw for the headlight washer pipe, with torque values for each fastener.
    Does the Golf Mk7 R-Line have a different wing?
    The shape may differ slightly (wider arches on R models). The mounting points are the same, but verify part numbers for your specific variant.
