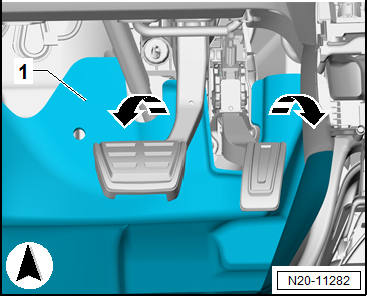

Fold floor covering -1-
forwards in -direction of arrow-. |
|
|
|
| – |

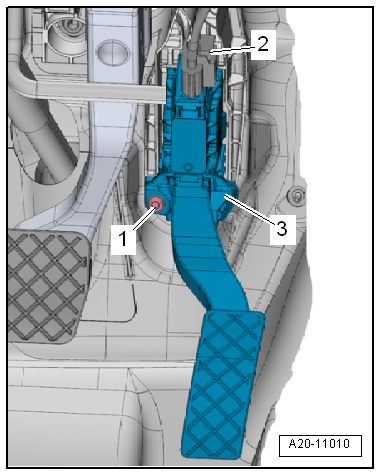

Release and pull off connector -2-
on accelerator pedal module -GX2-. |
| – |
Detach accelerator pedal module -3-
from mounting. |
| Install in reverse order. In the process, note the
following: |
| → Chapter „Assembly overview - accelerator module“ |
|
|
|
Questions & answers
Removing and installing accelerator module -GX2- — Volkswagen Golf Mk7
How do I remove the Golf Mk7 electronic accelerator pedal -GX2-?
Disconnect the connector, unbolt from the bulkhead/pedal bracket and remove. A new module must be adapted via diagnostics.
1 -
Bolt
6 Nm
2 -
Electrical connector
Make sure it is engaged properly; pull to check that plug-in
con ...
