Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - Bowden cable

This assembly overview traces the bonnet release Bowden cable path on the Volkswagen Golf Mk7 — from the release lever, through the mounting bracket and clutch, to the bonnet lock itself — with the 1.5 Nm bolt torque for the mounting bracket.

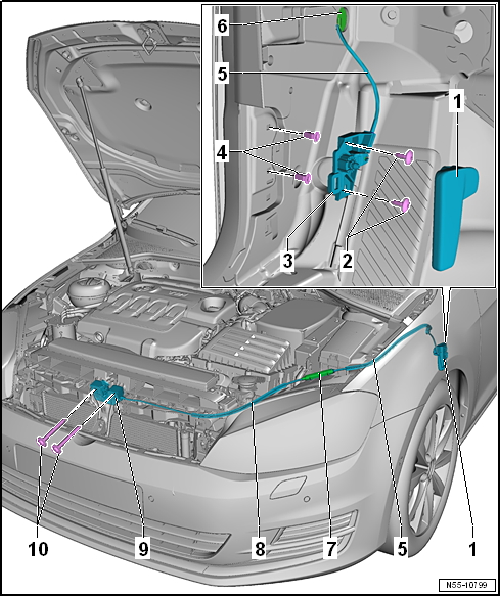

Assembly overview - Bowden cable

1 -  Release lever
  • Removing and installing → Chapter
2 -  Bolt
  • Qty. 2
  • 1.5 Nm
3 -  Mounting bracket
4 -  Expanding nut
  • Qty. 2
5 -  Bowden cable
  • From mounting bracket -3- to clutch -7-
6 -  Grommet
7 -  Clutch
8 -  Bowden cable

From clutch -7- to bonnet lock -9-

9 -  Bonnet lock
  • Removing and installing → Chapter
10 -  Bolt
  • Qty. 2
  • 12 Nm
