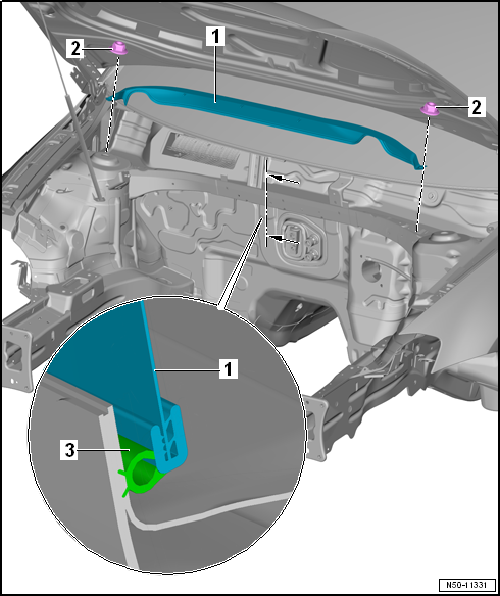

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview – plenum chamber bulkhead
This assembly overview identifies the Volkswagen Golf Mk7 plenum chamber bulkhead, its hexagon nuts (8.0 Nm, qty 2) and its seal — the components that separate the engine bay from the windscreen air-intake area.
| 1 - | Plenum chamber bulkhead |
| q | Removing and installing → Chapter |
| 2 - | Hexagon nut |
- Qty. 2
- 8.0 Nm
| 3 - | Seal, plenum chamber bulkhead |
Questions & answers
Assembly overview – plenum chamber bulkhead — Volkswagen Golf Mk7
What does the Golf Mk7 plenum chamber bulkhead assembly overview show?
The bulkhead panel, hexagon nuts (8 Nm) and the seal. It is a simple assembly with few components.
What torque are the Golf Mk7 plenum chamber bulkhead nuts?
8 Nm for the hexagon nuts. Overtightening can deform the thin panel and compromise the seal.
