Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing emblem with model designation, “R”

Using torque wrench -V.A.G 1783-, this page covers removing the R emblem from the Volkswagen Golf Mk7 radiator grille — the same procedure as the R-Line variant, requiring the grille to be removed first.

Special tools and workshop equipment required



Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

  Note

Only remove when radiator grille -3- is removed.

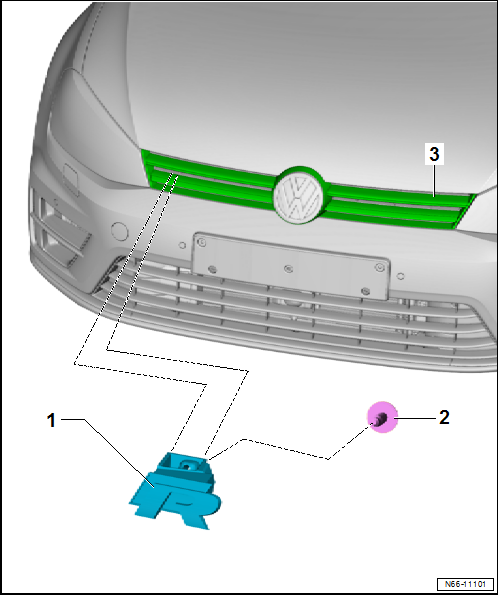

Removing and installing emblem with model designation, “R”

Removing
–  Removing radiator grille → Chapter
–  Unscrew bolt -2- on inner side of radiator grille -3-.
–  Remove “R” emblem -1- from radiator grille -3- towards front.
Installing
Install in the reverse order of removal observing the following:
Specified torques

Component Specified torques
“R” emblem 2.0 Nm
