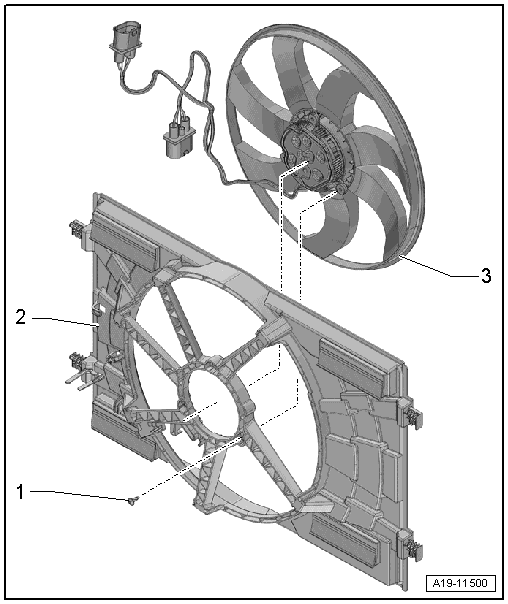

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - radiator cowl and radiator fan
This assembly overview covers the Volkswagen Golf Mk7 radiator cowl and fan -V7-: a 5 Nm bolt securing the cowl, both with their own removal cross-references.
| 1 - | Bolt |
| 5 Nm |
| 2 - | Radiator cowl |
| Removing and installing → Chapter |
| 3 - | Radiator fan -V7- |
| Removing and installing → Chapter |
