Volkswagen Golf Mk7 Service & Repair Manual: Suction feed spray-gun -V.A.G 1538

Designation: suction feed spray gun -V.A.G 1538-. Used for sealing cavities and applying underbody sealant on new and used Volkswagen Golf Mk7 vehicles.

Designation:
Suction feed spray-gun -VAG 1538-
Product description:
Tool for sealing cavities in all new and used cars and for applying underbody sealant.
Design, features and technical data:
Special gun with safety check valve and quick release coupling for probe.
Max. spray pressure: 10 bar.
Air connection thread: R 1/4".
Air consumption: Approx. 100 l/min.
Weight: 1300 g.
Items supplied:
Suction feed spray-gun
1 litre steel can, painted
Flexible hook probe -V.A.G 1538/1-
Nylon probe -V.A.G 1538/2-
Replacement parts:
Hook probe -V.A.G 1538/1-
Nylon probe -V.A.G 1538/2-
  Note
Recommended accessories are listed in the → Catalogue Workshop equipment and Special tools available under volkswagen-service.net.

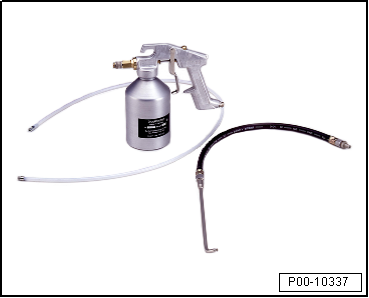

  Suction feed spray-gun -V.A.G 1538

    Questions & answers

    Suction feed spray-gun -V.A.G 1538 — Volkswagen Golf Mk7

    What is suction feed spray gun -V.A.G 1538-?
    A tool for sealing cavities. It sprays cavity preservative wax into enclosed body sections through access holes.
