Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - assembly mountings

This assembly overview covers the Golf/Estate/SV/Passat engine and gearbox mountings: a bolt that must always be renewed, with its tightening sequence, and the engine support with its own specified torque.

Assembly overview - assembly mountings, Golf 2013 ►, Golf Estate 2014 ►, Golf SV 2015 ►, Passat 2015 ►, Passat Estate 2015 ►

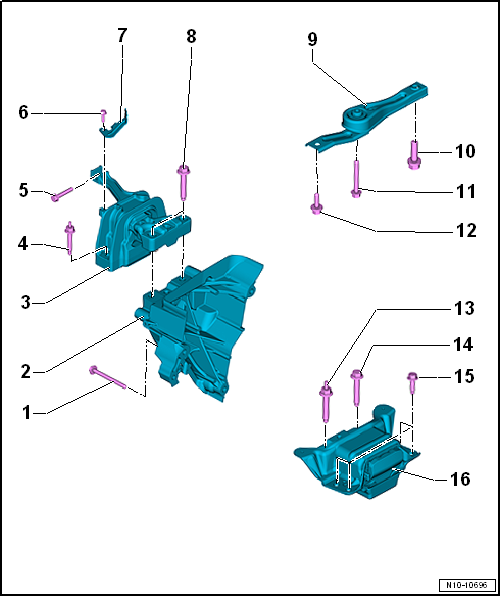

Assembly overview - assembly mountings

1 -  Bolt
Renew
Tightening sequence → Rep. gr.10
2 -  Engine support
Specified torque and tightening sequence → Rep. gr.10
3 -  Engine mounting
With support arm.
Removing and installing → Rep. gr.10
4 -  Bolt
Renewing → Rep. gr.10
5 -  Bolt
Renewing → Rep. gr.10
6 -  Bolt
Specified torque → Rep. gr.10
7 -  Bracket
8 -  Bolt
Renew
Specified torque → Rep. gr.10
9 -  Pendulum support
Removing and installing → Running gear, axles, steering; Rep. gr.40
10 -  Bolt
Renew
Specified torque and tightening sequence → Rep. gr.10
11 -  Bolt
Renew
Specified torque and tightening sequence → Rep. gr.10
12 -  Bolts
Renew
Specified torque and tightening sequence → Rep. gr.10
13 -  Bolt
Renew
Specified torque → Rep. gr.10
14 -  Bolt
Renew
Specified torque → Rep. gr.10
15 -  Bolt
Renew
Specified torque → Rep. gr.10
16 -  Gearbox mounting
With support arm.
Removing and installing → Rep. gr.10
Gearbox bracket to gearbox:
Renew bolts after each removal.
Torque setting 40 Nm and then turn 90° further


Assembly overview - assembly mountings
