Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

This page covers removing the Volkswagen Golf Mk7 mirror with rain/light sensor -G397- — swing the mirror down approximately 25° to the stop, then pull the rear cover down while releasing its catches with a screwdriver.

Removing
–  Swing interior mirror downwards by approx. 25° as far as stop.

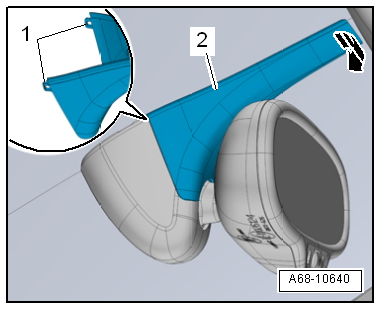

–  Pull rear cover -2- downwards -arrow- while simultaneously releasing catches -1- using a screwdriver.
–  Detach cover from mirror base and remove it.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

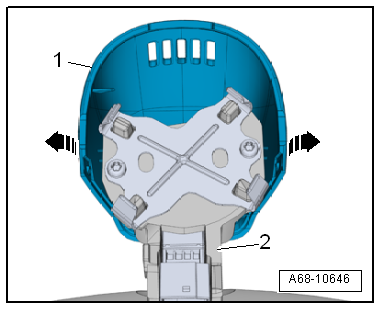

–  Carefully release locking lugs -arrows- and pull front cover -1- downwards out of guides on mirror base -2-.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

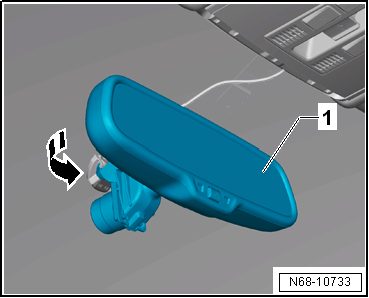

–  Turn interior mirror -1- anti-clockwise by 20° -arrow- and remove it downwards.
–  If fitted, disconnect connector from interior mirror.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

    Questions & answers

    Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242- — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 interior mirror with rain sensor?
    Swing the mirror down 25° to the stop, pull the rear cover down while releasing the catch, disconnect the connectors and remove.
