| Special tools and workshop equipment
required |
|
|
|
| Selector lever positioned in »P«. |
| Golf, Golf Estate, Golf SV, only diesel engine: |
| Remove air filter housing
→ Rep. gr.23. |
| Continued for all vehicles: |
| – |
Remove battery and battery tray
→ Electrical system; Rep. gr.27. |
|
|
|
| – |

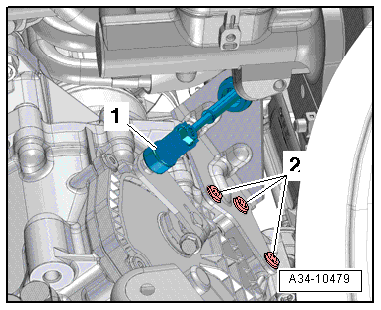

Using removal lever -80 - 200-, lever selector lever cable
-1- off gearbox selector lever. |
|
|
|
| – |

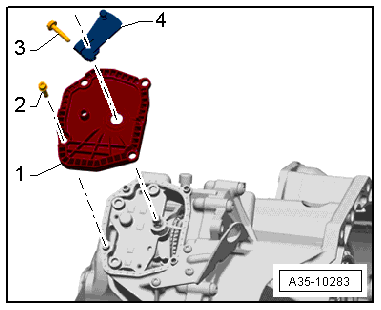

Unscrew bolt -3- and detach
gearbox selector lever -4-. |
| – |
Unscrew bolts -2- and remove
parking lock cover -1-. |
| Cover for parking lock must be renewed if seal for selector
shaft or seal on cover for parking lock is leaking. |
| – |
Clean sealing surface and cover for parking lock
-1-. |
| – |
Fit parking lock cover -1- and
screw in bolts -2-. |
| – |
Fit gearbox selector lever -4-
and screw in bolt -3-. |
| Continue installation in reverse order of removal. |
| – |
Install battery and battery tray
→ Electrical system; Rep. gr.27. |
| – |
Adjust selector lever cable
→ Chapter. |
|
|
|

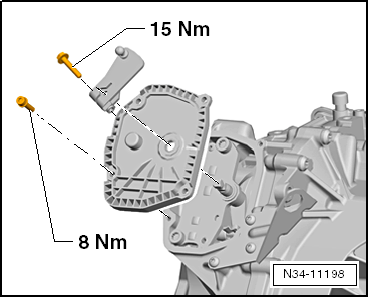

| Specified torque settings: |
|
|
|
Questions & answers
Removing and installing cover for parking lock — Volkswagen Golf Mk7
How do I remove the Golf Mk7 DSG parking lock cover?
Unbolt the cover from the gearbox housing. The parking lock mechanism is accessible behind it.
Removing
Gearbox is installed.
–
Remove cover for parking lock -1-
...
