| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1783- |
| – |
Remove upper steering column trim
→ Chapter. |
| – |
If necessary, remove ignition key. |
| – |

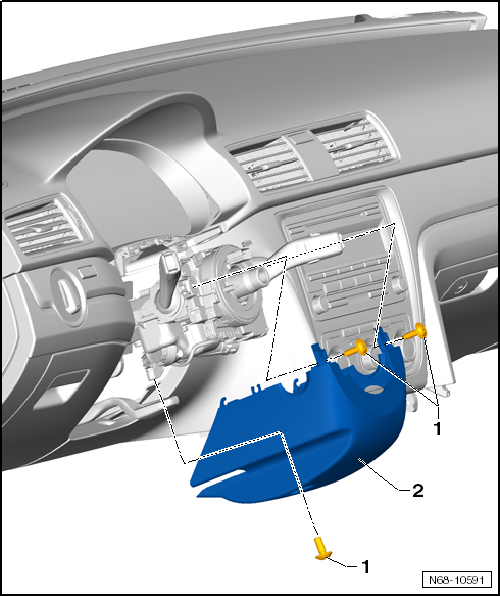

Unscrew bolts -1- from lower steering
column trim. To do this, turn steering wheel accordingly. |
| – |
Remove lower steering column trim -2-
from steering column. |
| – |
On vehicles with keyless locking and starting system disconnect
connector for immobiliser reader coil -D2-. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - steering column trim“ |
|
Questions & answers
Removing and installing lower steering column trim — Volkswagen Golf Mk7
How do I remove the Golf Mk7 lower steering column trim?
Remove the upper trim first, then unbolt the lower trim with torque wrench -V.A.G 1783-.
Special tools and workshop equipment
required
Removal wedge -3409-
...
Removing
–
Remove bolts -1-.
–
Release front passenger side footwell cover
-2- from dash panel and ...
