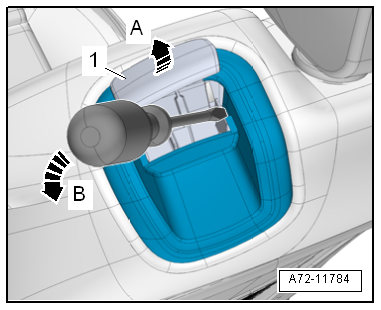

Pull operating lever -1-
upwards -arrow A-. |
| – |
Insert flat-bladed screwdriver between trim and operating
lever as shown in illustration. |
| – |
Release right locking hook -arrow B-. |
|
|
|
| – |

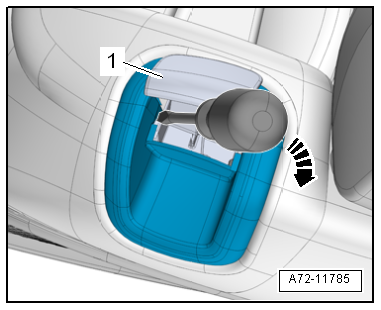

Hold operating lever -1- in
operated position and insert flat-bladed screwdriver between
trim and operating lever as shown in illustration. |
| – |
Release left locking hook -arrow B-. |
|
|
|
| – |
Move operating lever -1- back
to rest position. |
| – |

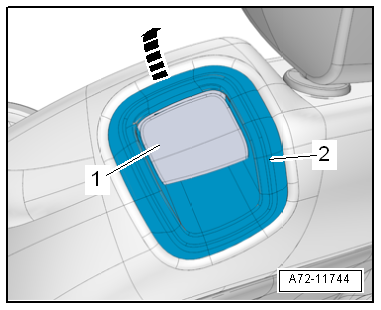

Detach trim -2- in
-direction of arrow- by hand. If
necessary, also push on opposite side. |
| Install in reverse order, but note the following: |
| – |
Move operating lever slightly upwards, guide trim over
operating lever and attach rear detent in backrest release
mechanism. |
|
|
|
