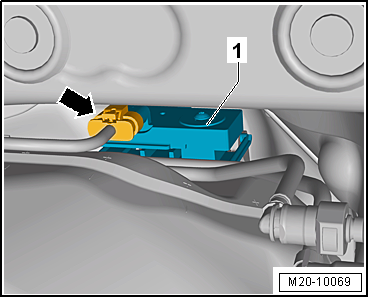

Release and pull off connector -arrow-
on control unit for fuel tank leak detection -J909--1-. |
|
|
|
| – |

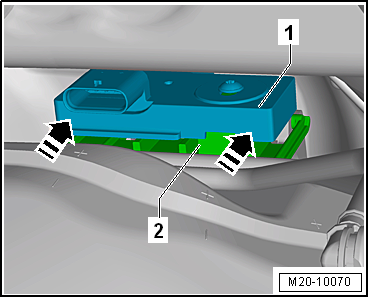

Push control unit for fuel tank leak detection -J909--1-
on both sides evenly upwards -arrows-,
until the catch can be heard to disengage. |
| – |
Remove control unit for fuel tank leak detection -J909--1-
from bracket -2-. |
| Install in reverse order. In the process, note the
following: |
|
|
|
| – |

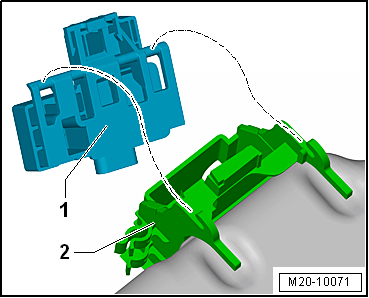

Fit control unit for fuel tank leak detection -J909--1-
properly in mounting -2-. |
| – |
Pull control unit for fuel tank leak detection -J909- evenly
downwards until it can be heard to engage. |
|
|
|
