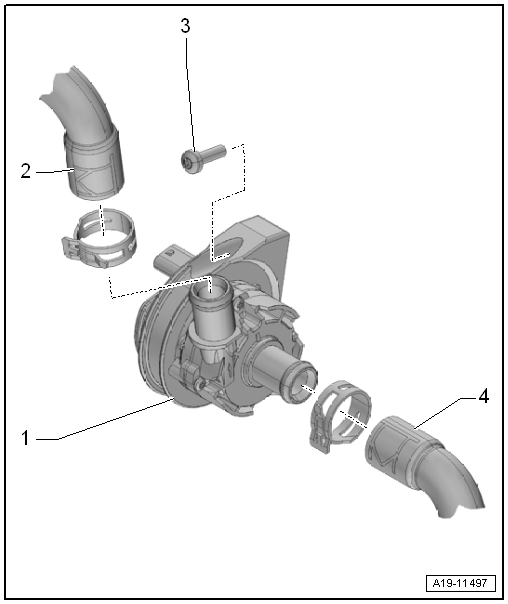

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - electric coolant pump
This assembly overview covers the Volkswagen Golf Mk7 electric coolant pump: the charge air cooling pump -V188- with its bracket, an 8 Nm bolt, and two coolant hoses.
| 1 - | Charge air cooling pump -V188- |
| With bracket |
| Removing and installing → Chapter |
| 2 - | Coolant hose |
| 3 - | Bolt |
| 8 Nm |
| 4 - | Coolant hose |
Questions & answers
Assembly overview - electric coolant pump — Volkswagen Golf Mk7
Does the Golf Mk7 1.4 TSI have an electric coolant pump?
Some variants have an additional electric pump for the turbo cooling circuit or auxiliary heater loop. Assembly shown with mounting and connector.
