 Note
| Removal and installation are only described for the left
window slot inner seal. Removal and installation of the right
window slot outer seal are similar. |
|
|
|
| – |
Remove rear door trim
→ General body repairs, interior; Rep. gr.70. |
| – |

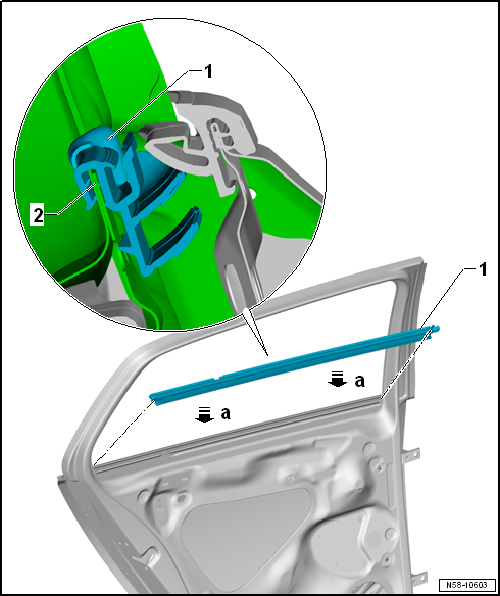

Lift off window slot inner seal -1-
uniformly from flange -2- without bending
or distorting it. |
| – |
Centre window slot inner seal -1--arrows a-
and press it uniformly and by hand at front onto door flange
-2-. |
Questions & answers
Removing and installing window slot inner seal — Volkswagen Golf Mk7
How do I replace the Golf Mk7 rear window inner seal?
Remove the rear door trim, peel back the vapour barrier, pull the old seal out and press the new one into the channel.
Note
The core of the window slot outer seal is a metal
insert.
If it is bent o ...
