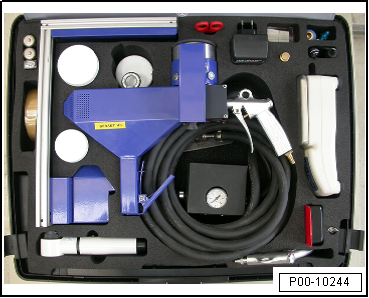

| Stone chip tester -VAS 5102A- |
| The stone chip tester -VAS 5102A- has been developed by VW
AG and allows the user to recognise whether paint damage is the
result of a fault in material or application or whether it has
been caused by excessive mechanical stress, for example stone
chipping or scratching. The test is based on the simulation of
average impact on vehicle paintwork in road traffic of low-mass
bodies, e.g. sand or gravel, travelling at a high velocity. |
 Note
| The testing procedure is described in detail in the
catalogue "Assessment of Vehicle Paintwork". |
| The unit is subject to an annual inspection by the
manufacturer. A charge will be levied for this service. |
| 1 stone chip tester with battery-powered metering device,
pressure regulator and hose |
| Calibration stand with test scales |
| Adhesive tape, 25 mm wide |
| Filling knife and scissors |
| Granulate feeder with 10 x 100 g granulate |
| 100 each VW and Audi seals |
| Operating instructions, evaluation scale, test certificate,
test plan |
|
|
|
Questions & answers
Stone chip tester -VAS 5102A — Volkswagen Golf Mk7
What is the stone chip tester -VAS 5102A-?
A device that fires controlled projectiles at painted panels to test the resistance of the paint system to stone chipping.
