Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - drive shaft, triple roller joint AAR3300i

This assembly overview covers the Volkswagen Golf Mk7 drive shaft with triple roller joint AAR3300i — the same 200 Nm plus 180° bolt torque and thread-cleaning requirement as the VL107 variant.

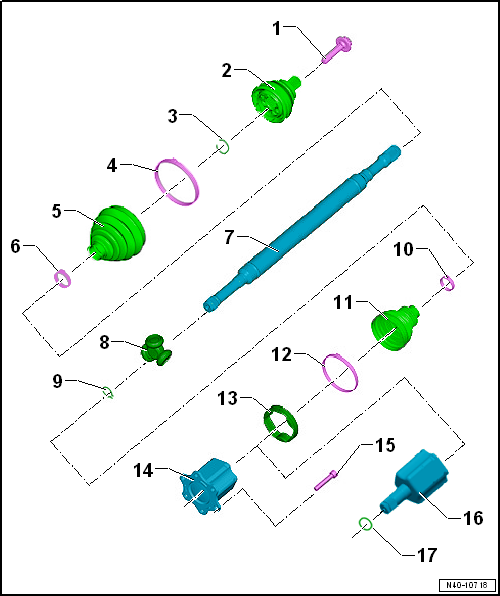

Assembly overview - drive shaft, triple roller joint AAR3300i

1 -  Bolt
Renew after removing
Loosening and tightening → Chapter
Before fitting, clean the threads in the CV joint using a thread tap.
200 Nm +180°
2 -  Outer constant velocity joint
Renew only as complete unit
Removing → Anchor.
Installing: drive onto shaft with plastic hammer until compressed circlip seats
Checking → Chapter
3 -  Retaining ring
Renew after removing
Insert in groove in shaft
4 -  Clamp
Renew after removing
Tightening → Fig.
5 -  Boot for constant velocity joint
Check for splits and chafing
Material: Hytrel (polyester elastomer)
6 -  Clamp
Renew after removing
Tightening → Fig.
7 -  Drive shaft
8 -  Triple roller star with rollers
The chamfer -arrow- points towards drive shaft splines.
Removing → Anchor.
9 -  Retaining ring
Renew after removing
Insert in groove in shaft
10 -  Clamp
Renew after removing
Tightening → Fig.
11 -  Boot for triple roller joint
Check for splits and chafing
12 -  Clamp
Renew after removing
Tightening → Fig.
13 -  Adapter
14 -  Joint body
Removing → Anchor.
15 -  Multi-point socket head bolt
M10 x 23
Initially tighten diagonally to 10 Nm and then tighten diagonally to specified torque.
70 Nm
16 -  Joint body
Removing → Anchor.
17 -  Retaining ring
Renew after removing
Insert in groove in shaft

    Questions & answers

    Assembly overview - drive shaft, triple roller joint AAR3300i — Volkswagen Golf Mk7

    What does the Golf Mk7 AAR3300i triple roller joint assembly show?
    Inner joint housing, three roller bearings, cage, boot, clamps and the shaft connection. The joint allows plunge movement for suspension travel.
