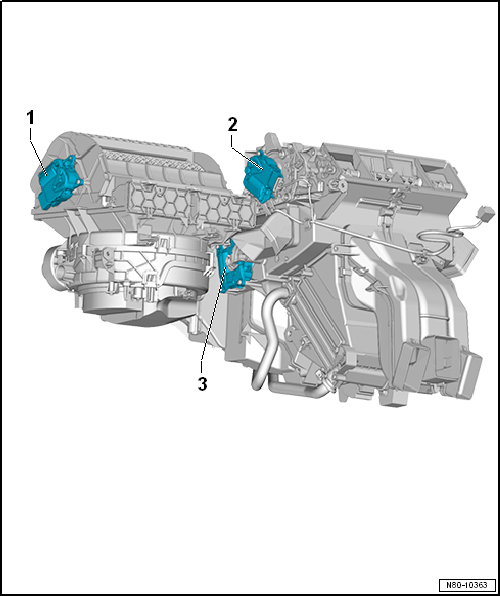

| 1 - |
Air recirculation flap control motor -V113- |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 2 - |
Air distribution flap control motor -V428- |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| 3 - |
Temperature flap control motor -V68- |
| Checking: with vehicle diagnostic tester |
| Removing and installing
→ Chapter |
| Renewing: initiate basic setting using vehicle diagnostic tester. |
| Removing and installing temperature flap
control motor -V68- with potentiometer -G92-, LHD vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
| Removing and installing temperature flap
control motor -V68- with potentiometer -G92-, RHD vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
| Removing and installing air
recirculation flap control motor -V113-, LHD vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
| Removing and installing air
recirculation flap control motor -V113-, RHD vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
| Removing and installing air distribution
flap control motor -V428- with potentiometer -G645-, LHD
vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
| Removing and installing air distribution
flap control motor -V428- with potentiometer -G645-, RHD
vehicles |
| Removal and installation are identical with procedure for
vehicles with air conditioning system
→ Chapter. |
|
|
|
