Risk of damage to bearing pedestals when the
crankshaft is removed.If the bolts of the crankshaft bearing cap are
loosened, the bearing pedestals of the cylinder block will be deformed,
and damage to the bearings will result.Never remove the crankshaft.
| Special tools and workshop equipment
required |
|
|
|
| Universal dial gauge bracket -VW 387- |
|
|
|
| – |

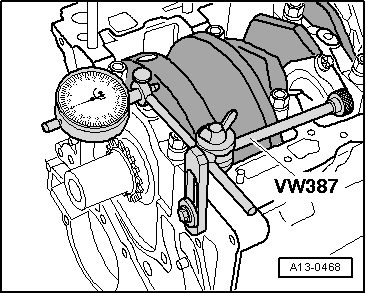

Screw dial gauge -VAS 6079- with universal dial gauge
bracket -VW 387- to cylinder block as shown in the illustration. |
| – |
Position dial gauge against crank web. |
| – |
Press crankshaft against dial gauge by hand and set gauge to
“0”. |
| – |
Push crankshaft away from dial gauge and read off measured
value. |
| Axial clearance: 0.066 … 0.233 mm. |
|
|
|
Questions & answers
Measuring axial clearance of crankshaft — Volkswagen Golf Mk7
How do I measure Golf Mk7 1.4 TSI crankshaft axial clearance?
Mount a dial gauge on the block and push the crankshaft fully forward, then fully backward. The difference is the axial clearance.
