| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1331 |
| – |
Remove knee airbag with igniter
→ Chapter. |
| – |
Remove footwell vent on driver side
→ Heating, air conditioning; Rep. gr.87. |
| – |
Remove data bus diagnostic interface -J533-
→ Electrical system; Rep. gr.97. |
| – |

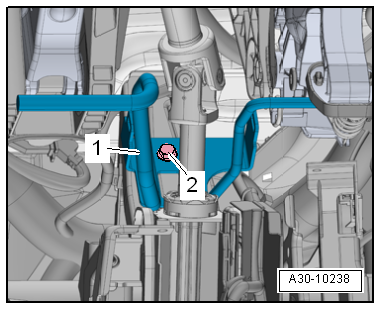

Unscrew bolt -2-, detach crash
bar -1- and thread it out. |
| When removing crash bar on vehicles manufactured up to
11/2012, stick a felt strip as per
→ Electronic Parts Catalogue onto the replacement
part (does not apply for LHD vehicles with automatic gearbox). |
| This is necessary because the clearance to the footwell vent
is very small. |
|
|
|
| – |

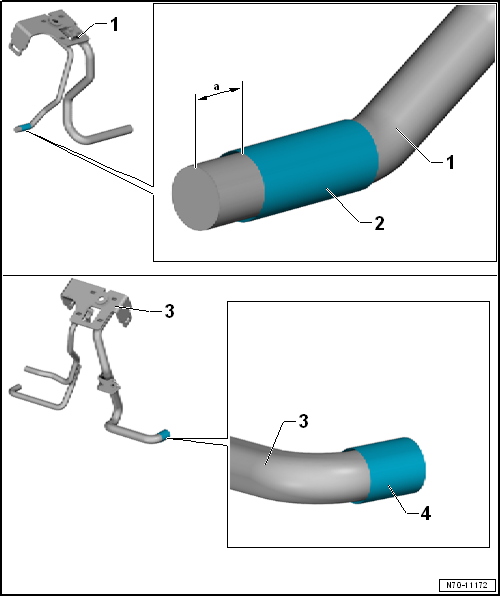

On LHD vehicles with manual gearbox, attach felt strip
-2- maintaining a distance of 7.5 mm
-dimension a- to edge of crash bar
-1-. |
| – |
On RHD vehicles with manual or automatic gearbox, attach felt strip
-4- flush with edge of crash bar
-3-. |
| Further installation is carried out in reverse order of
removal. Observe the following: |
|
|
|
| – |

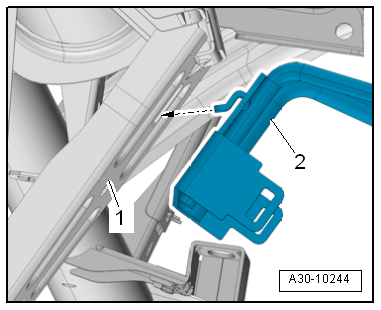

Attach crash bar -2- on central
tube -1--arrow- and bolt it on. |
| |
→ Chapter „Assembly overview - dash panel central tube“ |
|
|
|
