Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - wheel housing trim, saloon

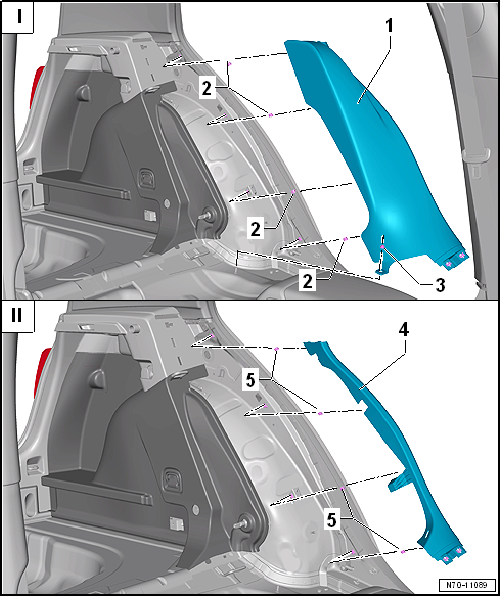

This assembly overview covers the Volkswagen Golf Mk7 saloon wheel housing trim, left side shown (right is a mirror image), with separate variants for vehicles with and without side padding.

  Note

The illustration shows the wheel housing trim on the left side. The right-hand side is similar (mirror image of left-hand side).

I: Vehicles without side padding

II: Vehicles with side padding

1 -	Wheel housing trim

• Removing and installing → Chapter

2 -	Retaining clip

• Insert into trim
• Remove any retaining clips left in body mountings using removal tool -T40280
• Renew any damaged or deformed retaining clips

3 -

Nut

• 3.5 Nm

4 -	Wheel housing trim

• Removing and installing → Chapter

5 -	Retaining clip

• Insert into trim
• Remove any retaining clips left in body mountings using removal tool -T40280
• Renew any damaged or deformed retaining clips
