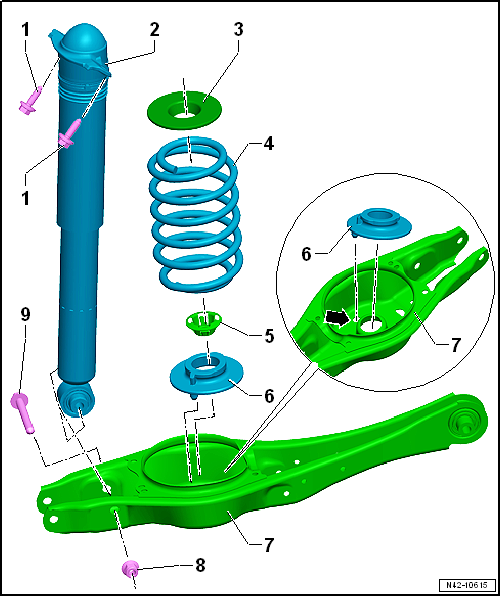

Assembly overview - suspension strut, shock absorber, spring, multi-link suspension

1 -  Bolt
Renew after removing
50 Nm +45°
2 -  Shock absorber
Removing and installing → Chapter
Note correct installation position of cable tie fastener.
Defective shock absorbers must always be degassed and drained before disposal → Chapter
3 -  Upper spring seat
Fit on lug on body.
4 -  Spring
Removing and installing → Chapter
5 -  Clip
Assists with installation
6 -  Lower spring seat
Turn end of spring against stop
When installing, fit pin into aperture in spring mounting on lower transverse link -arrow-.
7 -  Lower transverse link
8 -  Nut
Renew after removing
Always tighten bolted connection with suspension in unladen position → Chapter
70 Nm +180°
9 -  Bolt
Renew after removing
