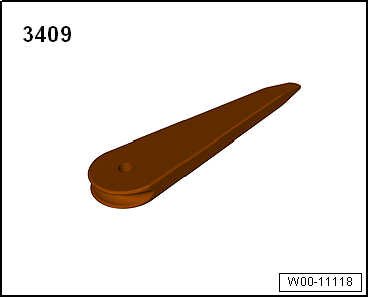

Using cover plate -T10532- and removal wedge -3409-, this page covers replacing the RHD Volkswagen Golf Mk7 dust and pollen filter — the same care with glove compartment contents applies.
| Special tools and workshop equipment
required |
| Commercially available vacuum cleaner |
|
|
|
 Note
| Handle customer property in the glove compartment with care. |
| Store any objects from the glove compartment in a sealable
plastic bag. |
| – |
Move glove compartment lid to service position
→ General body repairs, interior; Rep. gr.68. |
|
|
|
| – |

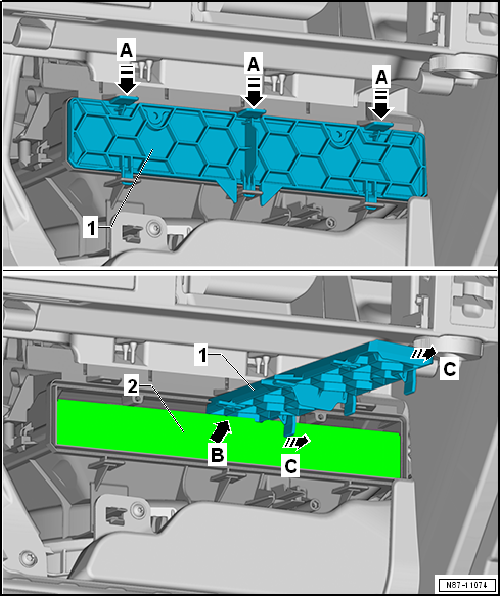

Release cover -1- in
-direction of arrow- and remove it. |
|
|
|
| – |

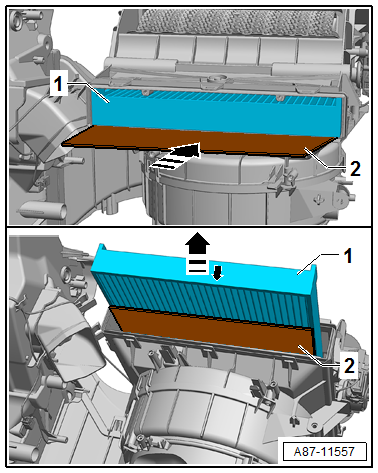

Push cover plate -T10532--2-
under the pollen filter -1-. |
Note
| The illustration shows a left-hand drive vehicle. |
|
|
|
| – |
Hook cover -1- into dust and
pollen filter -2--arrow -. |
Risk of damage to fresh air blower caused by dirt dropping out of the
dust and pollen filter when the cover plate is not seated
properly.Carefully pull out dust and pollen filter.Keep dust and pollen
filter covered by cover plate.
| – |
Pull out cover -1- in
-direction of arrow C-. |
| – |
Ensure that cover plate -T10532- is not pulled out as well. |
| – |
Before removing cover plate -T10532-, remove any dirt and
leaves using a commercially available vacuum cleaner. |
| – |
Install in reverse order. Note the following when doing
this: |
| – |
Observe installation position of dust and pollen filter when
installing. |
|
|
|
