Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing centre underbody cover – e-Golf

This page covers removing the e-Golf centre underbody cover: remove the bolts, unscrew the nuts, and lift the cover free, with the specified torques given for reassembly.

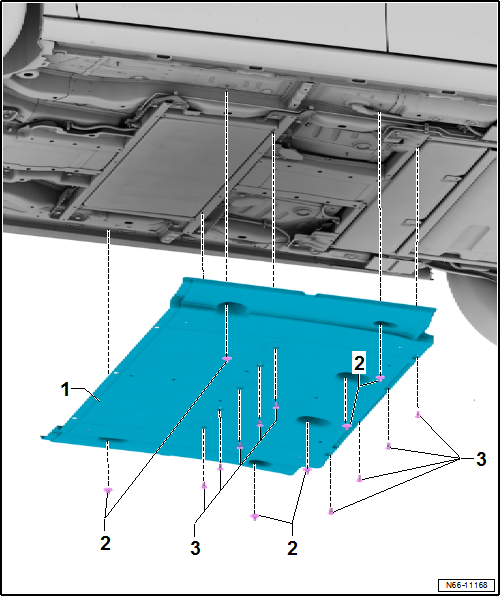

Removing and installing centre underbody cover – e-Golf

Removing
–  Remove bolts -2-.
–  Unscrew nuts -3-.
–  Remove underbody cover -1-.
Installing
Install analogously in reverse order, but note the following:
Specified torque
  Bolts → Item
  Nuts → Item
