| If measured values are outside specified tolerances, this
may be because the vehicle is inclined. |
| Right-hand drive vehicles or e.g. vehicles with an automatic
gearbox may lean to one side slightly. |
| This is due to the installation position of the assemblies
and their associated weight transfer and is normal. |
| – |

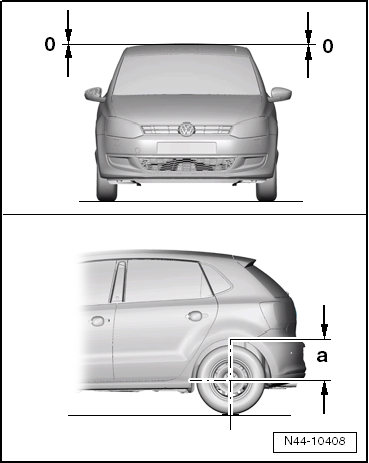

In such cases it is essential to measure dimension
-a- at the rear on both sides. |
| – |
Correct any differences as required. |
| On the front axle, compensate by adding weights to the top
of the respective suspension turret. |
| On the rear axle, compensate by adding weights to the
respective side of the luggage compartment. |
| Sand-filled sacks (weighing approx. 10 kg) are suitable for
this. |
|
|
|
Questions & answers
Setting vehicle to initial position for wheel alignment — Volkswagen Golf Mk7
How do I set the Golf Mk7 to initial position for alignment?
Roll the car forward and backward on the alignment ramp to settle the suspension, apply the brake, and lock the steering wheel straight ahead.
These specifications apply to all engines.
Explanations regarding PR numbers
→ Chapter „Vehicle data sticker“.
Front axle
Basic
...
Always adhere to the following procedure!
Note
The vehicle must always be in unladen condition when
measuring wheel alignment
&# ...
