Volkswagen Golf Mk7 Service & Repair Manual: Cavity sealing, rear body

This page maps the Volkswagen Golf Mk7 rear body cavity sealant zones, including the wheel housing and underbody area on 4MOTION vehicles (left side shown; right is a mirror image).

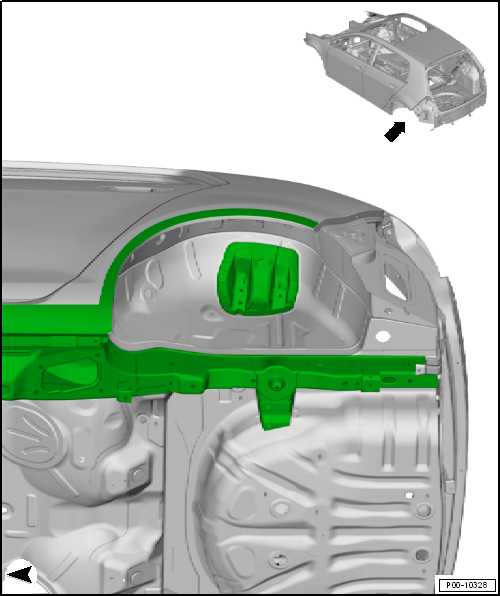

Cavity sealing, wheel housing and underbody at rear, 4-Motion vehicles
Illustration shows left side. The right side is the mirror image.
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

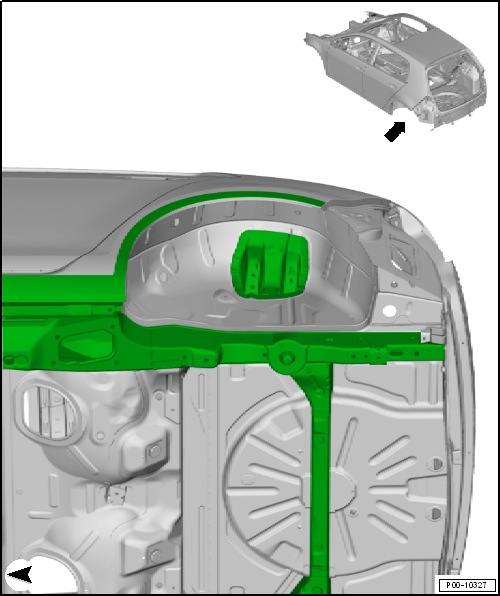

Cavity sealing, wheel housing and underbody at rear, vehicles with torsion beam rear suspension
Illustration shows left side. The right side is the mirror image.
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

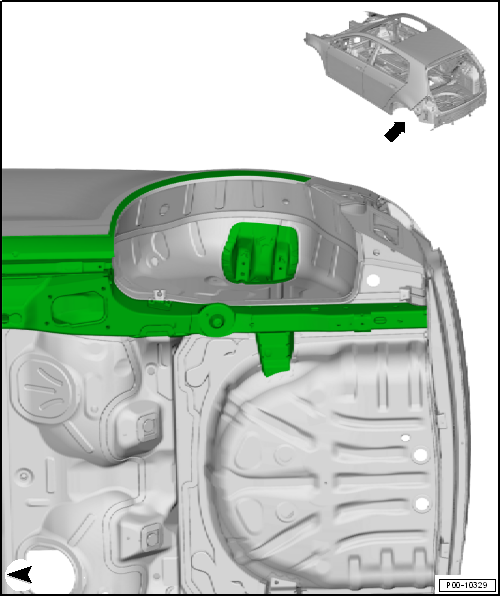

Cavity sealing, wheel housing and underbody at rear, vehicles with multi-link suspension
Illustration shows left side. The right side is the mirror image.
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

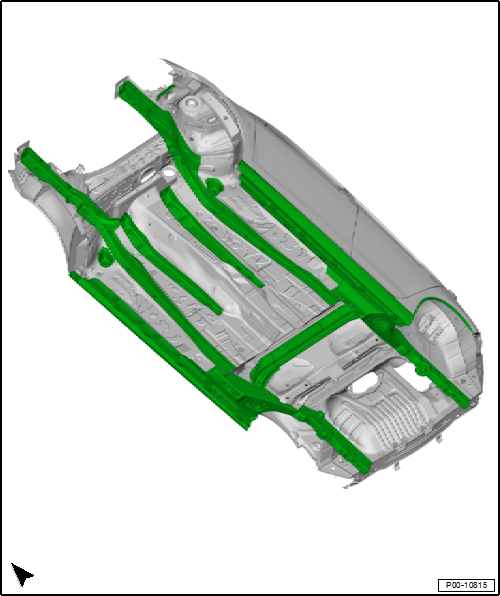

Cavity sealing, overview of body, hybrid vehicles

Cavity sealing, overview of body, hybrid vehicles
  Note
The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, overview of body, hybrid vehicles

    Questions & answers

    Cavity sealing, rear body — Volkswagen Golf Mk7

    What rear Golf Mk7 cavities are sealed?
    Rear wheel housing sections, rear floor cross-members and C-pillar cavities. 4MOTION models have additional sections.
    Cavity sealing, body at front and centre
    Cavity sealing, door of 2-door Illustration shows left side. The right side is the mirror image.   Note The indicated areas have been treated with cavity seal ...
