| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation is described for the front bracket
on the driver side. Follow same instructions for the front
passenger side as appropriate. |
| – |
Remove centre console trim in footwell on driver side
→ Chapter. |
|
|
|
| – |

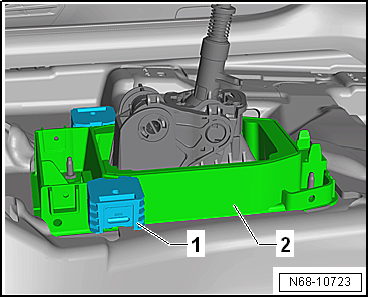

Push floor covering in area of front bracket
-2- aside. |
| – |
Release cover -1- from front
bracket -2- and remove it. |
| – |

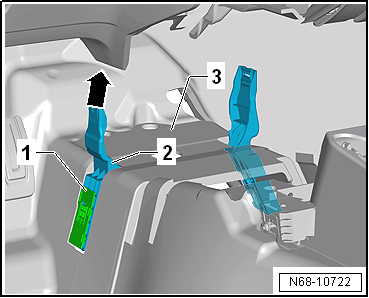

Remove front bracket -2-
upwards from tunnel -3-. |
|
|
|
| – |
Remove centre console
→ Chapter. |
| – |
Remove bolt -1- on left and
right. |
| – |
Remove securing bracket -2-
upwards from selector mechanism insulation
-3-. |
|
|
|
| Bracket in front of selector mechanism |
Note
| Removal and installation is described for the bracket in
front of selector mechanism on driver side. Follow same
instructions for the front passenger side as appropriate. |
| – |
Remove centre console
→ Chapter. |
| – |

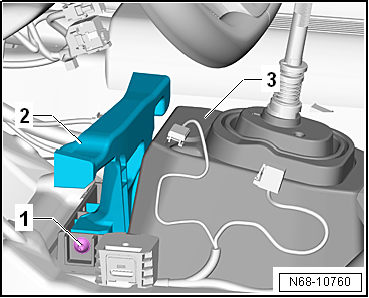

Remove retainer -1- from
selector mechanism insulation -2-. |
|
|
|
| Bracket behind selector mechanism |
| – |
Remove centre console
→ Chapter. |
| – |

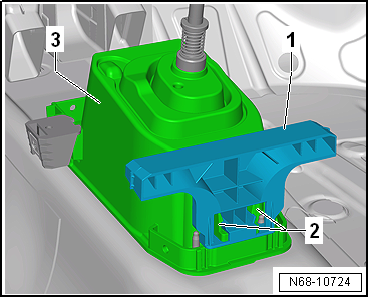

Push retaining lugs -2-
outwards. |
| – |
Remove retainer -1- from
selector mechanism insulation -3-. |
Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
|
|
|
| Bracket in front of selector mechanism |
| Insert retainer in front of selector mechanism
-1- into the rear mountings of
selector mechanism insulation -2-. |
| |
→ Chapter „Assembly overview - centre console“ |
|
|
|
